Specifications
Lens Configuration

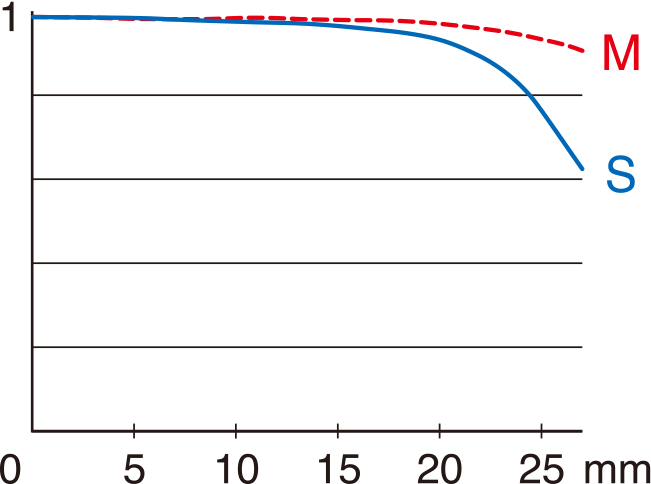

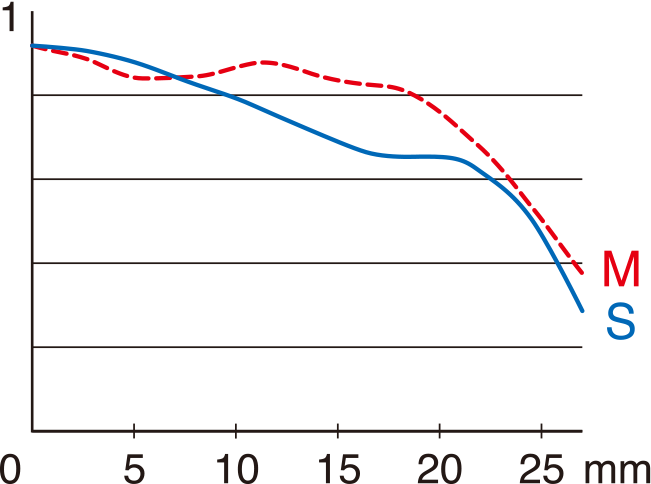

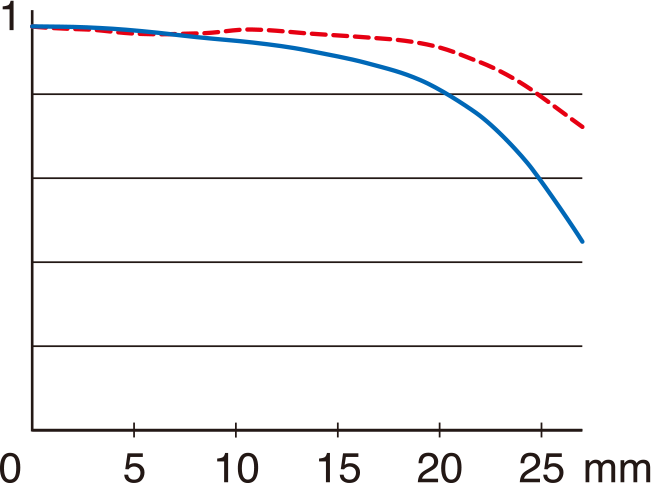

MTF Chart
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional
Spatial frequency 10 lines/mm
Spatial frequency 20 lines/mm
Spatial frequency 40 lines/mm
Specifications
| Type | FUJINON TELECONVERTER XF1.4X TC WR | |
| Lens configuration | 7 elements 3 groups | |
| Focal length | 1.4x that of original lens | |
| Max. aperture | 1 additional stop | |
| Min. aperture | 1 additional stop | |
| Focus range | Approx. same as that of original lens | |
| Max. magnification1.4x that of original lens | Approx. Φ58mm x 15mm | |
| Weight*2 | Approx.130g | |
NOTES
*1 Distance from camera lens mount flange
*2 Excluding lens cap, lens hood and hood cap
